Customized High Quality Large Span Steel Structure Building Warehouse for Sale
Product Details:
| Place of Origin: | China |
| Brand Name: | XGZ |
| Certification: | CE; ISO9001; GB |
| Model Number: | XGZ |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500 square meter |
|---|---|
| Price: | US $19.9-49.9 square meter |
| Packaging Details: | Standard Container |
| Delivery Time: | 45 work days |
| Payment Terms: | T/T |
| Supply Ability: | 5000 Ton Per Month |
|
Detail Information |
|||
| Type: | Warehouse | Capacity: | Large |
|---|---|---|---|
| Cost: | Affordable | Design: | Modern |
| Durability: | High | Material: | Steel |
| Size: | Customizable | Sustainability: | Environmentally Friendly |
| Highlight: | customized steel structure warehouse,large span steel building,prefabricated steel warehouse for sale |
||
Product Description
Customized High Quality Large Span Steel Structure Building Warehouse for Sale

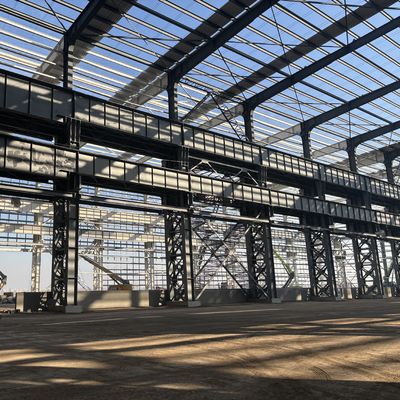

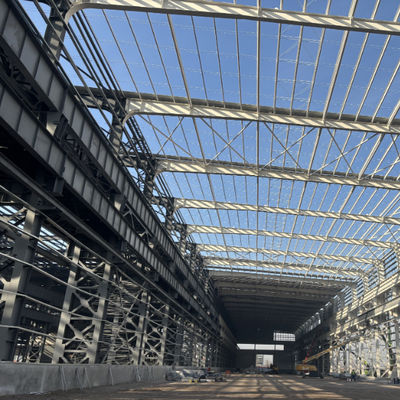

A steel warehouse is an industrial storage building whose primary load-bearing structure (such as beams, columns, and roof trusses) is constructed of steel. It typically utilizes a portal steel frame as its primary structural form, a highly efficient and economical structural system.
Product Specification:
| Name | Specification |
| Length | Single slope, double slope, multi slope |
| Width | Single span, double span, multi span |
| Height | Single floor, double floor |
| Column | Q235, Q345 welded H section steel |
| Beam | Q235, Q345 welded H section steel |
| Purlin | Q235 C channel or Z channel |
| Knee brace | Q235 angle steel |
| Vertical and transversal support | Q235 angle steel, round bar or steel pipe |
| Tie bar | Q235 steel pipe |
| Brace | Q235 round bar |
| Cladding system | sandwich panels (EPS,PU,Fiber glass wool etc.) or can use corrugated steel sheet with fiber glass wool insulation and steel wire gauze |
| Partition wall | sandwich panels (EPS,PU,Fiber glass wool etc) |
| Ventilation | ventilator |
| Door | sandwich panel sliding door or roller door |
| Gutter | stainless steel or color steel sheet |
| Rainspout | PVC |
| Live load on roof | In 120kg/sqm (color steel panel surrounded) |
| Wind resistance grade | 12 |
| Earthquake-resistance | 8 degree |
| Structure usage | Up to 50 years |
Main components include:
Foundation: A reinforced concrete foundation, securing the upper steel structure and transferring loads to the foundation.
Main Steel Structure:

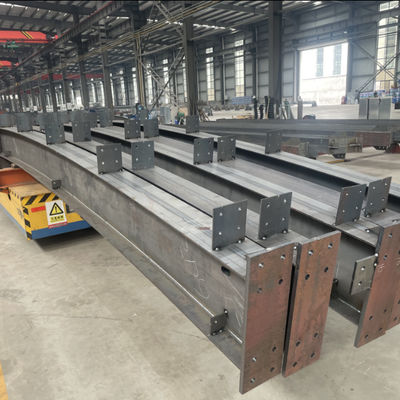

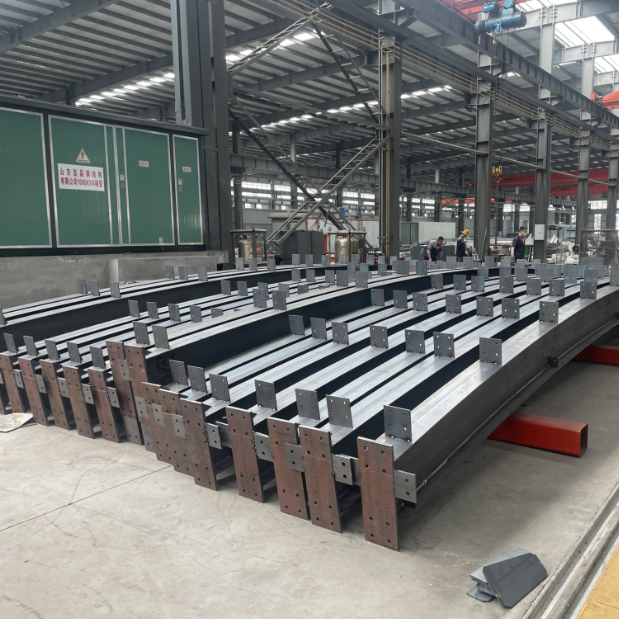

Steel Columns: Vertical supporting members of the building.
Steel Beams: Horizontal members connecting the columns, providing roof and floor support.
Purlins and Wall Beams: Secondary members mounted on the main steel frame, supporting the roof and wall panels.
Enclosure System:
Roof Panels: Typically constructed of color-coated steel sheets, providing waterproofing, corrosion resistance, and thermal insulation.
Wall Panels: Also often constructed of color-coated steel sheets, forming the building's exterior walls.
Auxiliary Systems:
Ventilation and Lighting Systems: These include roof ventilators and skylights, ensuring a pleasant indoor environment.
Door and window systems: large industrial doors (rolling doors, sliding doors, etc.) and window
